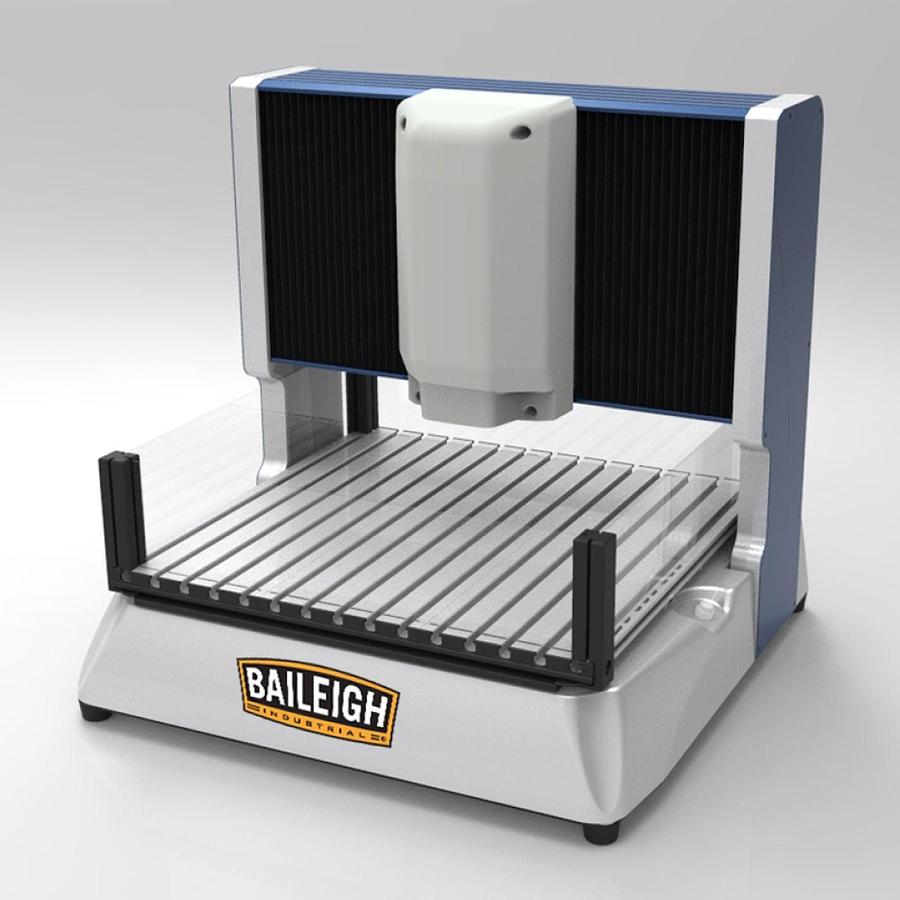

DEM-1717 - Desktop CNC Engraver

or
Call (954)444-4004

Description

  • 17" x 17" table
  • 200-watt DC brushless motor
  • 110V power

    •  The DEM-1717 is a desktop CNC router that is not only for small woodworking projects, but also for acrylic, ABS lathophane, EVA foam, Styrofoam, modeling wax, plastic and soft metal. It's able to carve products like tooling boards, toolboxes, tiny ornaments, and other projects.  The DEM-1717 and has also been used as teaching equipment in various high schools, and colleges worldwide.
    The DEM-1717 CNC router table comes with software, and tooling —often not included with competing tables that cost more. Built to last and the router arrives fully assembled.


  • 17" x 17" small CNC engraving machine.
  • Recommended for sign-makers, and hobbyists.
  • Powerful 200-watt DC Brushless Motor.
  • Up to 20,000 rpm variable spindle speed.
  • Runs on 110v power.
  • Easy-to-learn software; just install it onto your computer and start working.
  • Upload your design file to the table, then use the convenient handheld controller to move the spindle.
  • Stepper motors move the spindle at a maximum speed of 98.43" per minute.
  • Belt Drive X, Y, and Z-axis movement for accurate positioning.

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelDEM-1717
    ConditionNew
    Stock NumberBA9-1022103
    Maximum Engraving Speed Inches Per Minute98.4300
    Maximum Moving Speed Inches Per Minute98.4300
    Prop 65Cancer and Reproductive Harm
    Shipping Dimensions (L x W x H) (In.)22x21x21
    Tool DiametersER-11 – 4.0 mm
    Z Axis Stroke4
    Gross Weight87.0
    Net weight87.0

    Documents
