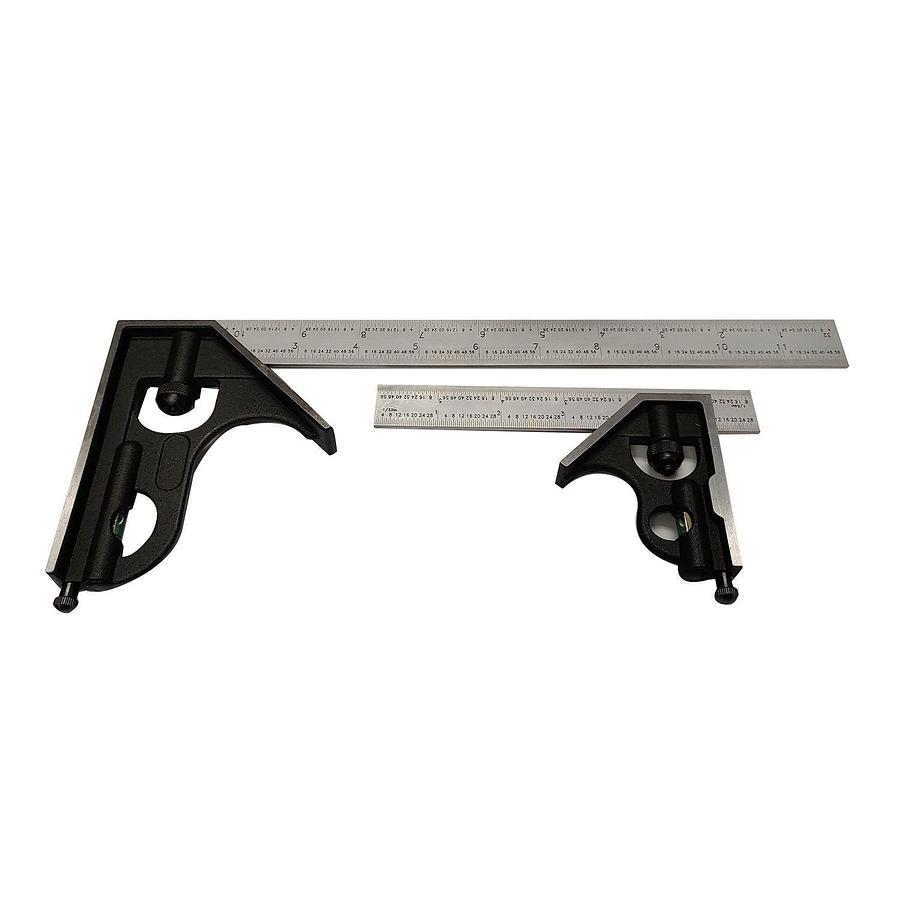

Combination Square Boxed Set - (B-MEASURE-CS)

or
Call (954)444-4004

Description

  • Set of two: 6" and 12"
  • Etched graduations at 1/8" 1/16" 1/32" and 1/64"
  • Cast heads incorporate bubble levels
  • Includes storage case

    • The B-Measure-CS is a set of 6" and 12" Combination Squares that feature hardened and tempered steel blades with a satin chrome finish to reduce glare and resist rust.


  • Heads are machined cast iron with a black wrinkle finish
  • Moveable heads are set for readings at 45° and 90°
  • Blades are machine etched with graduations at 1/8", 1/16", 1/32" and 1/64"
  • Blade straightness and parallelism is 0.0006" /12"
  • End sureness: +/-0.03°
  • Head sureness: 0.0005" /12"
  • Miter sureness: 0.005"/12"
  • Heads include a level vial and a hardened steel scribe that screws into the tool body
  • Both tools are fitted into a single foam lined storage case with spring catches

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelB-MEASURE-CS
    ConditionNew
    Stock NumberBA9-1228221
    AccessoriesIncluded Accessories
    Measuring Length6" and 12"
    Prop 65Cancer and Reproductive Harm
    WarrantyNo value
    Gross Weight4.0
    Net weight4.0
