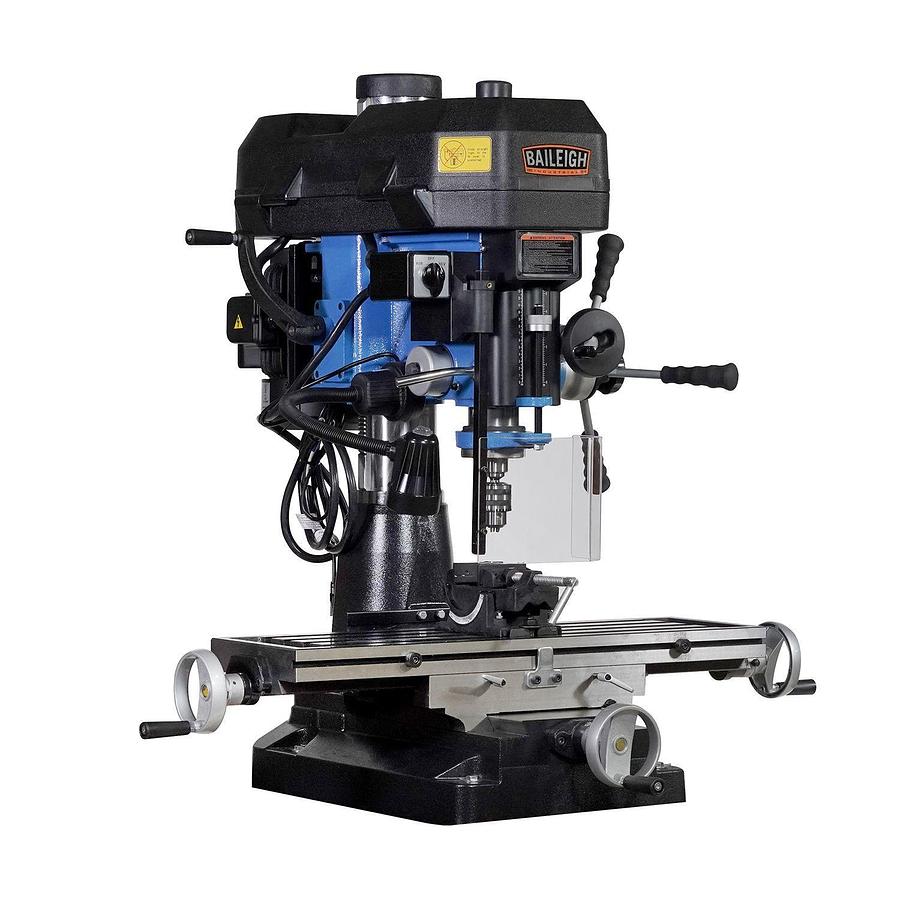

VMD-18 - 18" Mill Drill with R-8 Taper

or
Call (954)444-4004

Description

  • 115V 2hp motor.
  • R8 taper
  • 1.25” drilling capacity.
  • 12 speeds: 150 to 3000 rpm.

    • The Baileigh VMD-18 Mill Drill is the perfect option when operators need to do some light-duty milling that doesn't require a full-size milling machine but still allows the use of R-8 tooling. The ability to drill and mill with one machine saves time and money and is perfect for maintenance departments, machine, welding, job, or even home shops. An optional stand is also available if bench space is at a premium.
    Recommended for: Milling, drilling, tapping, and boring.


  • Efficiency
  • Belt-drive, step pulley system allows for rapid, easy speed changes to work with a variety of materials
  • Belt cover with quick slide latch allows faster belt adjustment to change spindle speeds
  • Drill press style angle vise locks material in place
  • Drill chuck & arbor allow easy changes from drilling to milling
  • 360° head swivel allows milling or drilling of oversized material
  • Articulated LED lamp illuminates your workpiece
  • Performance
  • Single piece, the cast iron column provides stable support for precise milling or drilling reducing deflection
  • Easy-to-read external depth gauge for accurate milling & drilling

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelVMD-18
    ConditionNew
    Stock NumberBA9-1231788
    Base Dimensions (In.)15-3/4 x 23-3/4
    Column Diameter (In.)4-1/2
    Drilling Capacity (In.)1.5
    Motor (HP)1-1/2 HP, 115V, 1Ph
    Number of Spindle Speeds12
    Prop 65Cancer and Reproductive Harm
    Quill Diameter (In.)3"
    Range of Spindle Speeds (RPM)150-3000
    Spindle Taper (In. x TPI)R8
    Spindle Travel (In.)4.75"
    Swing (In.)15-7/8
    T-Slots Number and Size (In.)4 & 5/8
    Table Longitudinal Travel (In.)20-1/2
    Table Size (L x W) (In.)32-1/4" x 9-1/2"
    Warranty1 Year
    Work Table Weight Capacity (Lbs.)400
    Gross Weight682.0
    Net weight595.0
