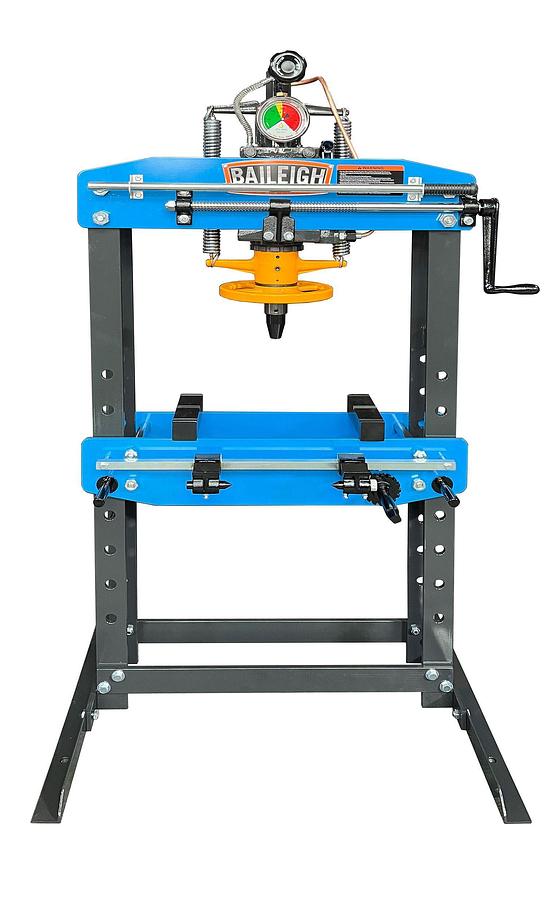

HSP-15A - 15 TON HYDRAULIC SHOP PRESS

or
Call (954)444-4004

Description

  • 15-ton capacity
  • Manual H-frame press
  • 24.75" working width
  • 4.5" stroke

    • Baileigh's HSP-15A is a 15-ton Hydraulic Shop Press with an H-frame. Each machine is built using a heavy steel plate that is electro-welded together and comes standard with industrial-grade hydraulics. These 15-ton hydraulic shop presses are for serious fabrication and machine shop owners who demand only the best quality from their operation.


  • 15-ton capacity.
  • 24.75” working width.
  • 4.5” cylinder stroke.
  • Industrial-grade hydraulic components will provide years of reliable use.
  • Adjustable table to fit a wide variety of applications.
  • Includes pressure regulator and gauge.
  • Rigid, electro-welded steel construction lets you work at full capacity with no worries about the machine flexing.
  • Comes standard with a V-block set.
  • Covered by a 1-year parts warranty and lifetime technical support by phone.

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelHSP-15A
    ConditionNew
    Stock NumberBA9-1232703
    Lateral Movement (In.)10-3/16
    Piston Stroke (In.)4-3/4
    Prop 65Cancer and Reproductive Harm
    Ram Diameter (In.)2-1/2
    Screw Stroke (In.)4
    Vertical Table Travel (In.)25
    Warranty1 Year
    Work Table Size (In.)24-3/4 x 7-1/2
    Gross Weight438.0
    Net weight438.0
    Cylinder MovableNo
