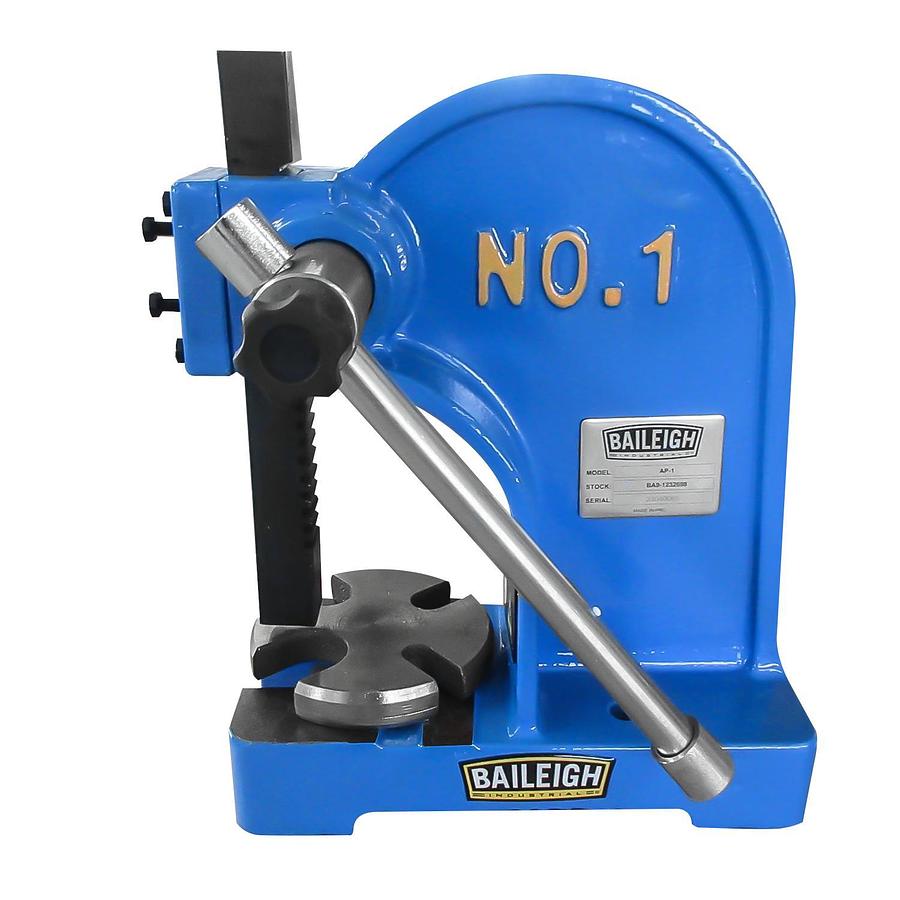

AP-1 - 1 Ton Arbor Press

or
Call (954)444-4004

Description

Our AP-1 arbor press has 1 ton of force. A great value, this arbor press will offer decades of profitable duty at full capacity. Order this heavy-duty arbor press from Baileigh Industrial.


  • 1-ton arbor press has a 4” throat opening and can handle material up to 5” high.
  • Solid, case-hardened square 1” ram executes precise presses every time.
  • Slideway allows for adjustment of tension and gap.
  • Machined 4-position die plate, perpendicular to the ram, lets you precisely secure the workpiece.
  • The bottom die plate includes the proper openings for most broaches to push through.
  • Rigid cast-iron frame avoids flex and maintains accuracy.
  • You can easily mount the press to a bench or pedestal.
  • We typically keep this industrial arbor press in stock for fast shipments.
  • 1-ton arbor press comes with a 1-year warranty, backed by Baileigh.
  • Our knowledgeable representatives will provide unlimited technical support.

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelAP-1
    ConditionNew
    Stock NumberBA9-1232698
    Anvil Diameter (In.)3-1/2
    Approx. Pressure (Tons)1
    Arbor Press Height (In.)12
    Capacity Over Table (In.)5
    Diameter of Work (In.)8
    Max. Work Height (In.)5-1/8
    Prop 65Cancer and Reproductive Harm
    Ram Bore (In.)3/8
    Size of Ram (In.)1 x 9-1/8
    Travel of Ram (In.)5-4/5
    Warranty1 Year
    Gross Weight27.0
    Net weight27.0
    Cylinder MovableNo
