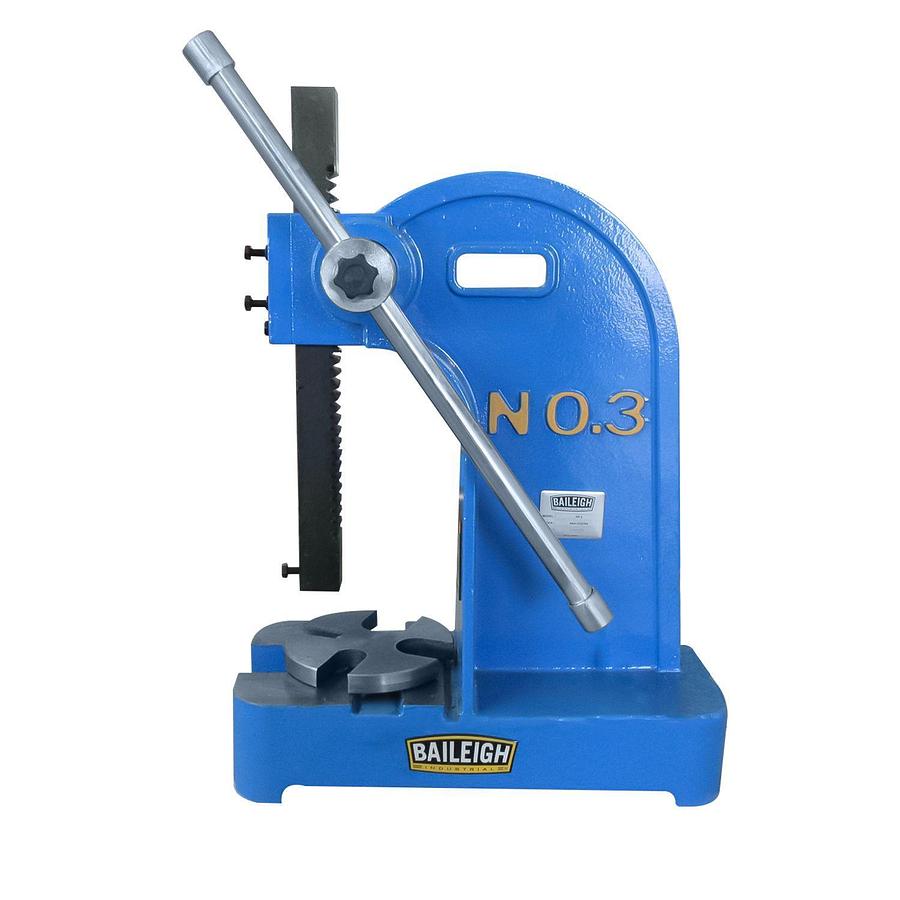

AP-3 - 3 Ton Arbor Press

or
Call (954)444-4004

Description

Our AP-3 arbor press has 3 ton of force. A great value, this arbor press will offer decades of profitable duty at full capacity. Order this heavy-duty arbor press from Baileigh Industrial.


  • 3 ton arbor press has a 5.675” throat opening and can handle material up to 12.5” high.
  • Solid, case-hardened square 1.5” ram executes precise presses every time.
  • Slideway allows for adjustment of tension and gap.
  • Machined 4-position die plate, perpendicular to the ram, lets you precisely secure the workpiece.
  • The bottom die plate includes the proper openings for most broaches to push through.
  • Rigid cast-iron frame avoids flex and maintains accuracy.
  • You can easily mount the press to a bench or pedestal.
  • We typically keep this industrial arbor press in stock for fast shipments.
  • 3 ton arbor press comes with a 1-year warranty, backed by Baileigh.
  • Our knowledgeable representatives will provide unlimited technical support.

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelAP-3
    ConditionNew
    Stock NumberBA9-1232700
    Anvil Diameter (In.)6-11/16
    Approx. Pressure (Tons)3
    Arbor Press Height (In.)18-1/8
    Capacity Over Table (In.)11-1/2
    Diameter of Work (In.)11-3/8
    Prop 65Cancer and Reproductive Harm
    Ram Bore (In.)1/2
    Travel of Ram (In.)12-3/5
    Warranty1 Year
    Gross Weight108.0
    Net weight108.0
    Cylinder MovableNo
