HP-50H Hydraulic Punch

or
Call (954)444-4004

Description

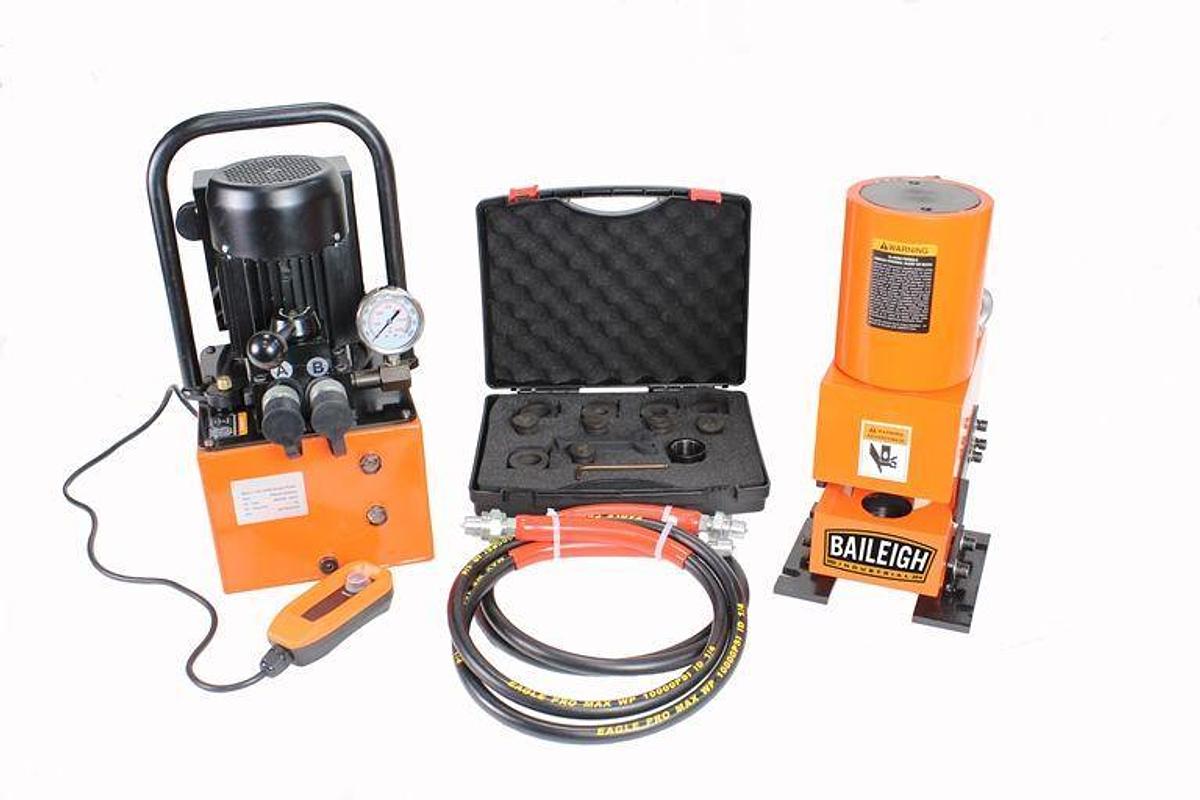

  • 110V 50-ton hydraulic punch
  • Includes 5 sets of punches from .5" to 1"
  • Electric pump with flow rate up to 17 in3/min

    • The HP-50H hydraulic punch sets a new standard in affordable plate punching. This heavy-duty plate punch machine covers most applications in the industry and offers everything you need to punch various-sized holes. Just add hydraulic fluid, plug it in, and let the punching begin. High-quality and reliable, this hydraulic plate punch is ruggedly built to withstand years of use in a garage or a full fledged fabrication shop. Order this hydraulic punch for sale today!

  • Harnesses 50 tons of punching force.
  • Includes .5 hp electric pump and hoses.
  • Pump reaches a flow rate of up to 17 in3/min and will start under a full load.
  • 24-volt remote control enables you to operate the punch from a safe distance of up to 10 feet away.
  • 5 punch sets accommodate the following bolt sizes: 1/2”, 5/8”, 3/4”, 7/8”, and 1”.
  • Double-acting cylinder design facilitates fast cycle times.
  • Comes standard with a depth stop to help with repeatability, and a lifting bracket.
  • Adjustable stripper prevents movement of the metal during stripping.
  • Covered by a 1-year warranty and lifetime technical support by phone from our team of knowledgeable reps.

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelHP-50H
    ConditionNew
    Stock NumberBA9-1011990A
    Prop 65Cancer and Reproductive Harm
    Warranty1 Year
    Gross Weight310.0
    Net weight310.0
    Maximum Pressure (PSI)30bar/700bar Double acting
    Motor (HP).5 hp
    Throat Depth (In.)3.875"
    Volts110
