BW-200MP - 200A Multi-Process Welder

or
Call (954)444-4004

Description

  • Multi-function inverter MIG/Stick/TIG welder
  • LCD screen
  • Dual driving wire feeder
  • Automatic dual voltage: 120/230 volt single-phase

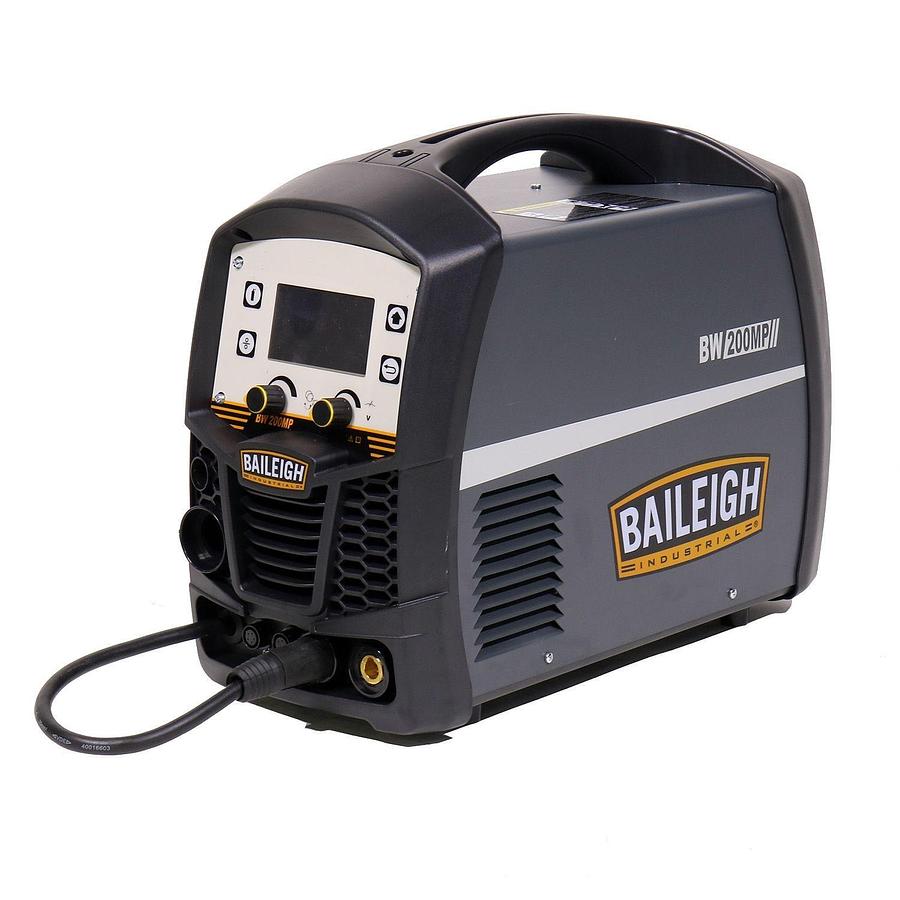

    • The Baileigh Industrial BW-200MP is a dual-voltage inverter-powered multi-process welder that  features an LCD control screen that quickly and easily walks the user through setup. This 200A welder will excel in almost any environment and comes with the features that you demand.


  • The BW 200 IGBT inverter technology requires 25% less input power and delivers consistent power output, making it generator safe
  • Dual voltage can run on 120 volt or 230-volt single-phase power
  • LCD control screen provides quick and easy setup with save for future setup mode
  • Performs MIG and Flux Core Welding 40–140 Amps (120V) and 40–200 Amps (230V) || TIG Welding up to 180 Amps|| Stick Welding up to 180 Amps
  • Built-in, adjustable spot timer adds versatility
  • Synergic wire diameter and material thickness settings makes for easy work
  • Infinite wire feed speed control allows user to adjust the voltage and current accurately
  • ARC force (MMA) and Hot start (MMA)
  • 2T/4T (trigger lock off/ trigger lock on)
  • 200A Inverter Welder Includes: 10ft. spool gun, electrode holder, TIG torch, MIG torch, ground clamp, gas regulator w/hoses, 6-50P 250V plug, and adaptor to 120V plug

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelBW-200MP
    ConditionNew
    Stock NumberBA9-1021972
    CertificationCSA UL
    Cooling SystemFan Cooled
    Current Draw (Watts)200 Amps
    Duty Cycle 10057A (120V) / 89A (230V) - 10 Minutes
    Enclosure ProtectionIP21S
    Input PowerDual Voltage - 120V/230V Single Phase
    Insulation ClassF
    Lift Welding Current10A~70A (120V) / 10A~180A (230V)
    Mig Welding Current40A~90A (120V) / 40A~120A (230V)
    MMA Welding Current10A~70A (120V) / 10A~180A (230V)
    No Load Voltage69V (120V) / 69V (230V)
    Power Factor0.7500
    Prop 65Cancer and Reproductive Harm
    Rated Duty Cycle40% (120V) / 20% (230V)
    Rated Input Capacitance3.5KVA (120V) / 8.6KVA (230V)
    Rated Input Current20A (120V) / 36A (230V)
    Rated Working Voltage18.5V (120V) / 24V (230V)
    Shipping Dimensions (L x W x H) (In.)28x13x18
    Warranty1 Year
    Gross Weight71.0
    Net weight71.0
    Efficiency (percentage)85%
