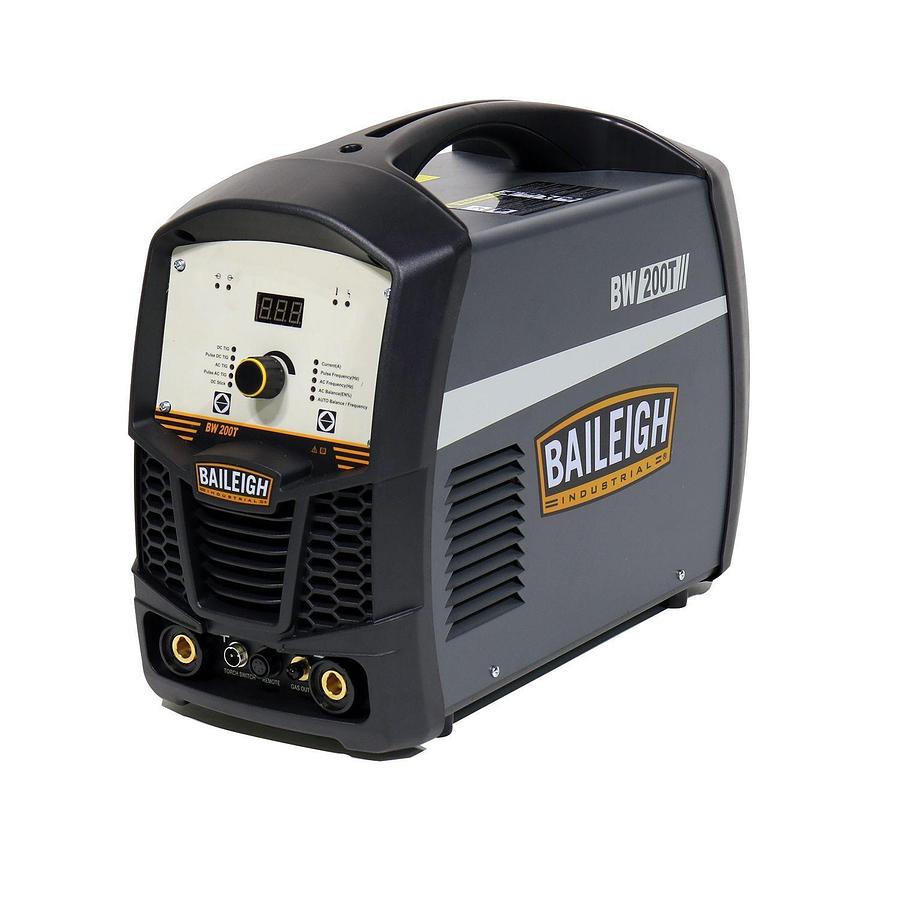

BW-200T - 200A AC/DC Pulse TIG Welder

or
Call (954)444-4004

Description

  • 200A AC/DC pulse TIG welder
  • IGBT inverter
  • Remote adjustment
  • Dual voltage: 120/230V single-phase

    • The BW-200T is the ultimate 200amp AC/DC Welding Machine. With variable AC frequency and pulse welding it caters for the more technical aluminum jobs. It features a complete set of control functions to cater for the more demanding jobs and includes a stick function to add to its versatility. The BW-200T is the ideal AC/DC welder for the aluminum welding fanatic. Order this AC/DC TIG welder from Baileigh Industrial today.

  • IGBT inverter
  • Dual voltage can run on 120 volt or 230-volt single-phase power
  • AC/DC with Remote adjustment
  • Pulse ratio and frequency
  • Peak / base current
  • Variable AC frequency / balance
  • Thermal overload protected and fan cooled (on demand) - Variable arc force and Generator safe
  • Tig / Stick / Lift Arc
  • 2 /4 step and Pre / Post gas flow and Up / Down Slope
  • Includes TIG Torch, ground clamp, 6-50P 250V plug, adapter to 120V plug, gas hose with regulator, and foot pedal

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelBW-200T
    ConditionNew
    Stock NumberBA9-1021971
    Balance AC Pulse TIG50%~85% (120V) / 50%~85% (230V)
    Balance AC TIG50%~85% (120V) / 50%~85% (230V)
    Base Current AC Pulse TIG50% Peak Current (120V) / 50% Peak Current (230V)
    Base Current DC Pulse TIG50% Peak Current (120V) / 50% Peak Current (230V)
    CertificationCSA UL
    Cooling SystemFan Cooled
    Current Draw (Watts)200 Amps
    DC TIG Rated Current10A~95A (120V) / 10A~200A (230V)
    Duty Cycle AC Pulse TIG40% (120V) / 35% (230V)
    Duty Cycle DC Pulse TIG40% (120V) / 35% (230V)
    Enclosure ProtectionIP21S
    Frequency AC Pulse TIG50Hz~150Hz (120V) / 50Hz~150Hz (230V)
    Frequency AC TIG50Hz~150Hz (120V) / 50Hz~150Hz (230V)
    Input PowerDual Voltage - 120V/230V Single Phase
    Insulation ClassF
    MMA Rated Current20A~65A (120V) / 20A~160A (230V)
    No Load Voltage65V (120V) / 65V (230V)
    Peak Current AC Pulse TIG20A~95A (120V) / 20A~200A (230V)
    Peak Current DC Pulse TIG10A~95A (120V) / 10A~200A (230V)
    Power Factor0.8000
    Prop 65Cancer and Reproductive Harm
    Pulse Frequency AC Pulse TIG0.2Hz~20Hz (120V) / 0.2Hz~20Hz (230V)
    Pulse Frequency DC TIG0.2Hz~200Hz (120V) / 0.2Hz~200Hz (230V)
    Rated Current AC TIG20A~95A (120V) / 20A~200A (230V)
    Rated Input Capacitance2.4KVA (120V) / 7.1KVA (230V)
    Rated Input Current20A (120V) / 31A (230V)
    Rated Working Voltage22.6 (120V) / 26.4 (230V)
    Shipping Dimensions (L x W x H) (In.)23x13x18
    TIG Arc WayHF (120V) / HF (220V)
    Warranty1 Year
    Gross Weight64.0
    Net weight64.0
    Efficiency (percentage)80%
