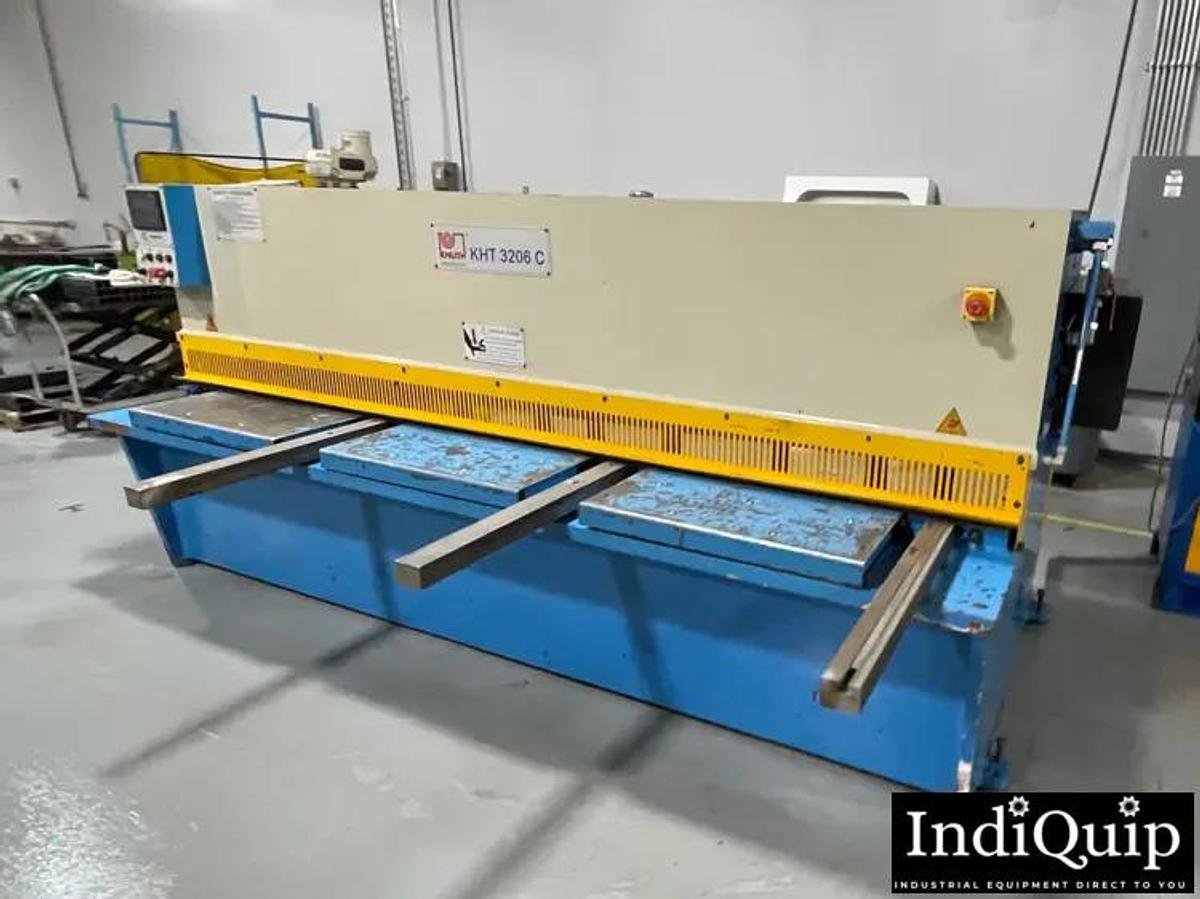

2010 Knuth KHT 3206C Shear

The Knuth 3206C Hydraulic Swing-Beam Shear is a high-performance metal cutting solution built for durability, accuracy, and operator efficiency. Engineered for industrial-grade sheet metal applications, this machine delivers clean, precise cuts with the support of a robust hydraulic swing-beam design—ideal for fabrication shops, production environments, and heavy-duty material processing.

This unit is fully equipped with a 5.7” Easy View touchscreen control, giving operators intuitive access to key settings and adjustments with minimal training. The advanced control interface simplifies blade gap settings, stroke adjustments, and cut length programming, streamlining the workflow and minimizing setup time between jobs.

For hands-free operation and enhanced safety, the shear includes a foot pedal control, allowing users to focus on material alignment and quality assurance without manual triggering. The machine also features squaring arms, ensuring perfect right-angle positioning for consistent, accurate shearing across the entire width of the material.

With a rugged frame and swing-beam design, the Knuth 3206C is capable of handling a wide variety of metal thicknesses with ease and stability. Its hydraulic system provides smooth, controlled shearing motion while reducing mechanical stress, extending the life of the blades and minimizing maintenance requirements.

Whether you're cutting mild steel, stainless, or aluminum sheet, this shear delivers reliable, repeatable results. Its combination of precision automation, ergonomic controls, and industrial-grade construction makes the Knuth 3206C a powerful addition to any metalworking operation. With premium features like the touchscreen Easy View system, foot pedal activation, and precision squaring arms, this shear offers exceptional value and production efficiency. Ready to elevate your shop’s cutting capabilities.

120" Width Capacity 40" Length Capacity 1/4" Thickness Capacity Hydraulic Motor/tank Assembly Shear Knife Action Distance between columns: 135" Work table height: 31.5" Motor rating: 10 Hp Power: 220/440 Volt, 60 Hz, 3 Phase Dimensions (LxWxH): 151”x63”x64" Weight: 15,840 lbs Oil capacity: 66 gallon
