Used WABASH UPS/4PS | Laminating Presses

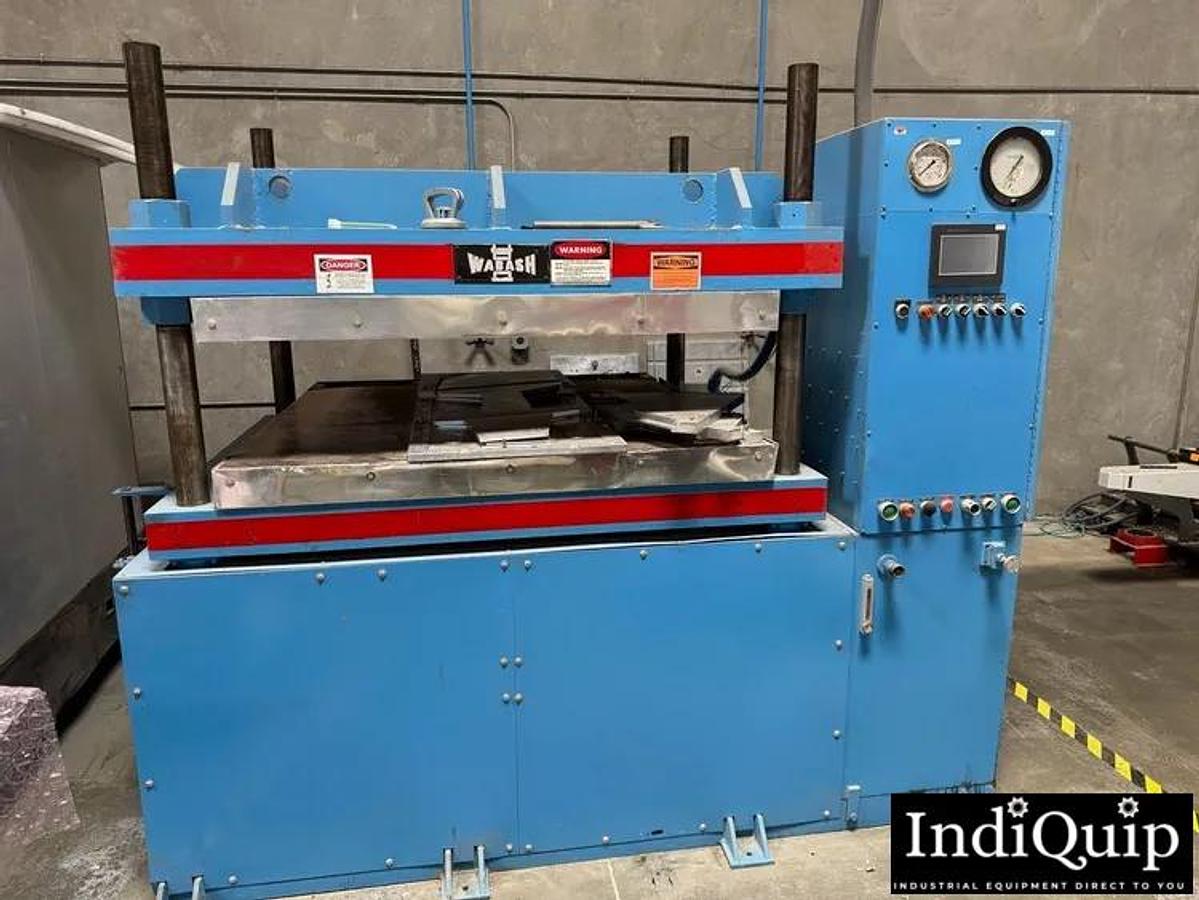

75 Ton Wabash, 4 Post, upstroke, 54” x 54” hot plates, 12” str., 20”-33” DL

4 post upstroke type; floor standing Distance between 3" dia. posts: 58" L-R x 45" F-B Platen area (nominal): 58" L-R x 54" F-B Overall dimensions of platen: 68" L-R x 54" F-B Stroke of fully guided platen: Approx. 0 - 12" maximum Daylight opening (total): 20 - 33" maximum (adjustable) Daylight opening between hot plates (1): 12" - 25" maximum (adjustable) Hot plates (2): 54" L-R x 54" F-B x 2.75" thick (electrically heated to 600° F - drilled for water cooling) Insulation (2): 54" L-R x 54" F-B x 1.75" thick Main ram diameter (2): 6"/3" @ 2650 PSI - 75 tons Floor to top of moving platen: 43" Power unit (base of press): Hydraulic pump, driven by 10 HP 1175 RPM 230/460/3/60 motor Speeds approx.: 60"/minute closing 3"/minute pressing to 75 tons 70"/minute return Controls: Pushbutton operation with stroke & pressure control Dual palm buttons Selector switch for manual or semi-automatic operation Cycle timers - low & high pressure Temperature controllers Low & high pressure gauges
