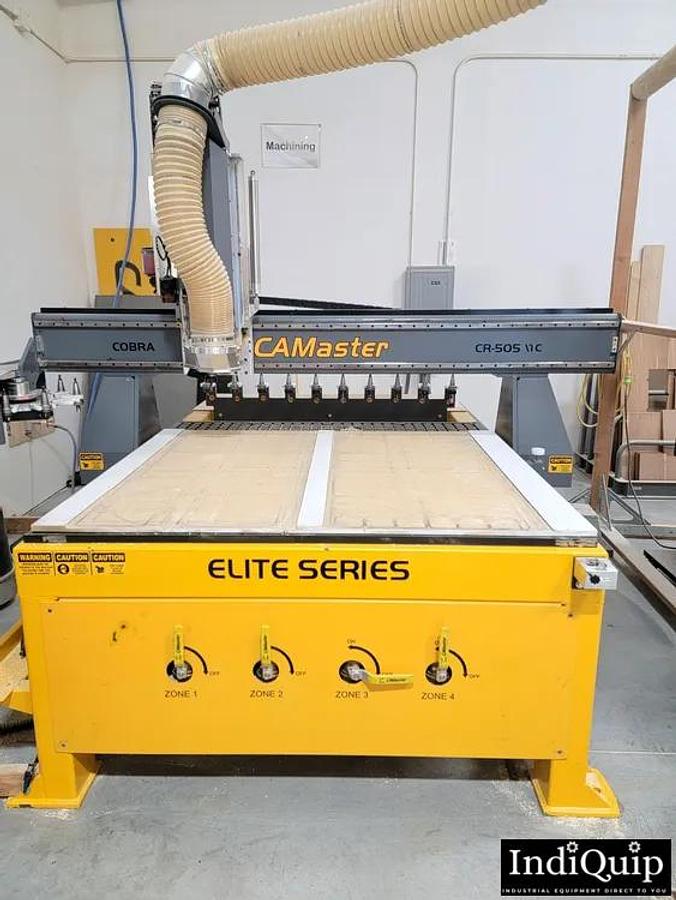

2020 CAMaster Cobra Elite CR-505 CNC Router

Boost your production power with this Camaster Cobra Elite CR-505, a premium industrial CNC router engineered for heavy-duty performance and precision. Featuring a 12 HP HSD automatic toolchanging spindle with a total of 20-tool capacity, this machine combines both a rotary carousel and rear-mounted tool rack, each fully equipped with tool cones, forks, and collets to maximize flexibility and uptime.

A 7W laser engraver adds vector and raster engraving capabilities, expanding your application versatility. The machine’s 61" x 61" cutting area and 10" Z-axis clearance are driven by brushless AC servo motors, dual Y-axis drive, Z-axis brake, and 25mm precision rails for consistent high-accuracy machining. The robust build includes a steel-welded frame, all-steel gantry, and gusseted side supports, enhanced with helical rack and pinion and planetary gearboxes for smooth, powerful motion.

Enjoy lightning-fast operation with 2500 IPM rapid travel speeds, precise automated setups via the automatic tool measure switch, and a WinCNC high-speed visual control system housed in a custom-built monitor stand with dedicated operation buttons and USB connectivity. The Windows 10 Pro-based control system includes a touchscreen, keyboard, mouse, and VCarve Pro software for seamless design-to-cut workflows.

Vacuum hold-down is handled by an upgraded 15 HP FPZ regenerative vacuum system, complete with safety and inline filters, vacuum gauge, grid table plumbing with valves, and a G-code activated auto relief valve—all built on a phenolic tabletop for added durability.

Whether cutting, routing, or engraving, this Camaster Cobra Elite CR-505 is built to deliver speed, precision, and flexibility to your industrial CNC operations.

- Upgraded to a 12 HP HSD Automatic Toolchanging Spindle. - Total of 20 tools - 10 Tool Holders, 10 Tool Cones and 10 Collets. Upgraded to a Rotary Carousel - Additional 10 tool rack in the back. Includes (10) tool cones, (10) tool forks and (10) tool collets. - 7W Laser Engraver. Capable of both Vector and Raster engraving. 61" x 61" Cutting Area w/ 10" Z Clearance - 12 HP HSD Collet Spindle - Brushless AC Servo Drive System - Dual Drive on Y Axis - Z Axis Brake - 25 MM Heavy Duty Precision Rails & Bearings on all Axis - Industrial Steel Welded Frame - All Steel Gantry - All-Steel Gusseted Side Supports - High Precision Planetary Gearboxes - Helical Rack & Pinion - Automatic Tool Measure Switch - 2500 Inches Per Minute (IPM) Rapid Travel Speed - Custom Built Monitor Stand with On/Off, Cycle Start, Cycle Stop and E-Stop Buttons and USB Port - High Speed Visual CNC Control System (WinCNC) - Windows 10 PRO Control Computer - Touch Screen Monitor, Keyboard, & Mouse - V Carve Pro Design Software - Upgraded to Phenolic Table Top 15 HP FPZ Regen Vacuum Hold-Down System. Includes: - 15 HP Regen Vacuum Pump. Pump runs off of 208-230/460 V 3 Phase Power. - Safety Valve - Inline Vacuum Filter - Inlet Vacuum Filter - Vacuum Gauge - Vacuum Grided TableTop and Plumbing w/Valves for easy connection to Vacuum Pump - Auto Relief Valve to Engage and Disengage Vacuum On Table Controlled Via G-Code
